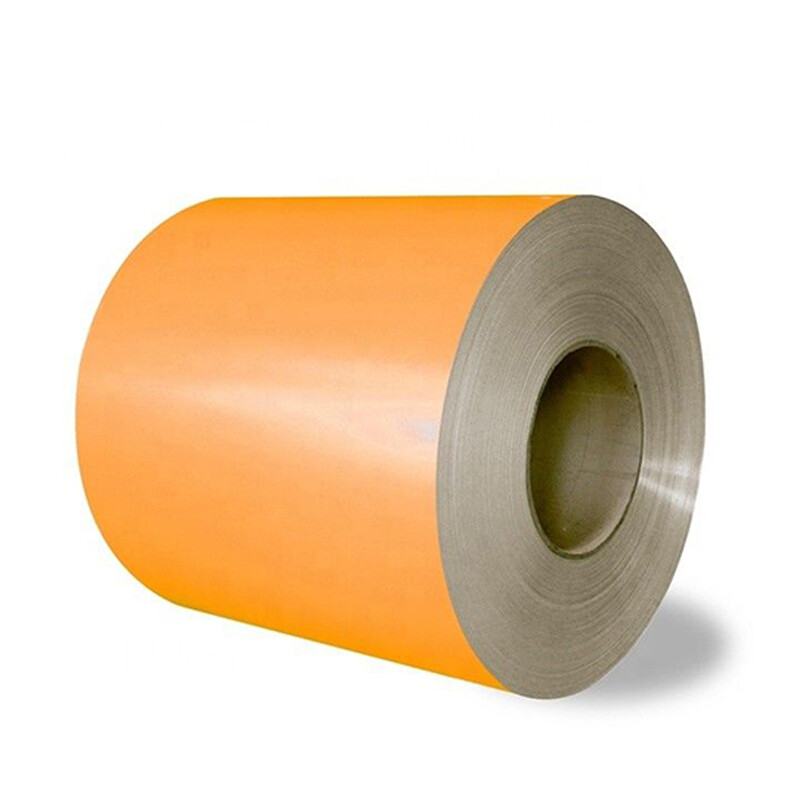

Prepainted Galvanized Steel Coil PVDF Cold-rolled pre-painted color coating Steel Coil
Contact me via WhatsApp
View Catalog pdf
Submit

PRODUCT DESCRIPTION


1,Product parameter:


Product NamePre-painted Steel Coil
Type of Substruategalvalume steel coil,cold rolled steel
Thickness0.14-2.0 mm
Width600 mm~1500 mm or as request
Coil ID508mm/610mm
Coating TypesTop paint:PVDF,HDP,SMP,PE,PU
Primer paint:Polyurethane,Epoxy,PE
Back paint:Epoxy,Modified polyester
Coatingtop coating 15+5um, back paint 7+3um, or customized
Coil Weight3-8MT
ColorsRAL Colors or as sample
StandardASTM-A653; JIS G3302; EN10147;etc
GradeSGCC, DX51D, SGCH
Regular Order25 tons or one container, for less quantity, to contact with us for details
HardnessSoft hard(HRB60),medium hard(HRB60-85),full hard(HRB85-95)
Surface TreatmentChromated/Non-Chromated, Oiled/Non-oiled, Skin pass
Loading portAny Port in China
Delivery times7-20 days after the receipt of deposit depends on quantity.


2,Application:


Cold-rolled pre-painted steel coil is a type of steel coil produced during the cold-rolling process, with a layer of pre-applied coating on its surface. The coating can be customized according to customer demands, such as polyester, silicone-modified polyester, polyurethane, polyamide, PVC, etc. Cold-rolled pre-painted steel coils usually provide different coating thicknesses and color choices to meet various customer needs.


3,Features:


Cold-rolled pre-painted steel coils have the following characteristics:


1,Good corrosion resistance: The surface coating of the steel coil has good corrosion resistance, which can resist the corrosion and oxidation of most chemicals.


2,High strength and stiffness: Cold-rolled pre-painted steel coils have high strength and stiffness, which can withstand pressure and external forces without deformation or damage.


3,Good formability: Cold-rolled pre-painted steel coils have good formability, which can be easily processed into various shapes and sizes of parts.


4,Aesthetics: Cold-rolled pre-painted steel coils have a beautiful surface and can be coated in various colors according to customer needs, increasing the aesthetics of the product.


5,Environmentally friendly: The surface coating of the steel coil is made of environmentally friendly paint, which does not contain harmful substances and meets environmental requirements.


In summary, cold-rolled pre-painted steel coils are widely used in multiple fields such as construction, home appliances, transportation, and metal products, due to their excellent corrosion resistance, high strength, good formability, aesthetics, and environmental friendliness.
