Product Describe

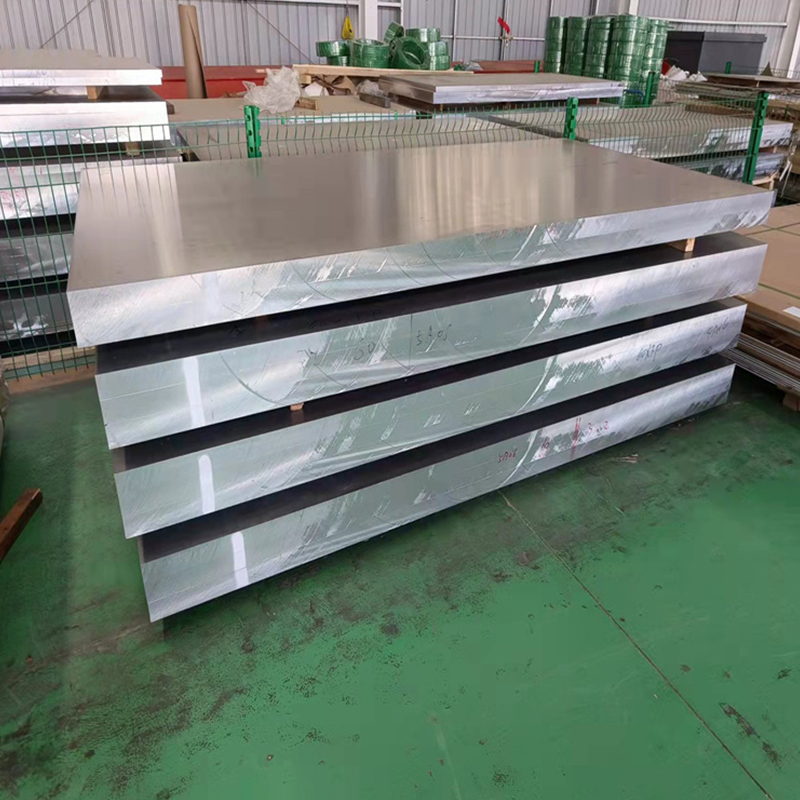

2024 aluminum plate is a typical duralumin in al-cop-magnesium system with reasonable composition and good comprehensive properties. The alloy is produced in many countries and is the most widely used duralumin. The characteristics of the alloy are: high strength, a certain degree of heat resistance, can be used for working parts below 150℃. The strength of 2024 alloy is higher than that of 7075 alloy at temperatures above 125℃. The formability is better in hot state, annealing state and new quenching state, and the effect of heat treatment is remarkable, but the heat treatment process is strict. Poor corrosion resistance, but with pure aluminum coating can be effectively protected; It is easy to crack when welding, but it can be welded or riveted with special technology. Widely used in aircraft structures, rivets, truck wheels, propeller components and other structural parts.
2024 aluminum plate is widely used in aircraft structure (skin, frame, rib, frame, etc.), rivets, missile components, truck wheels, propeller components and other various structural parts.
Chemical composition of 2024 aluminum plate
Si: 0.5%; Iron: 0.5%; Copper: 3.8-4.9; Manganese: 0.3-0.9; Magnesium: 1.2-1.8; Cr: 0.10; Zinc: 0.25; Titanium: 0.15; Other: 0.15; Aluminium: others;

Technical Parameters

Application

Aluminum plate refers to aluminum materials with a thickness of more than 0.2mm to less than 500mm, a width of more than 200mm, and a length of less than 16m called aluminum plates or aluminum sheets, aluminum materials less than 0.2mm, and rows or strips within 200mm width (of course. With the advancement of large equipment, there are also more rows of materials with a maximum width of 600mm). Aluminum plate refers to a rectangular plate rolled and processed from aluminum ingots, which is divided into pure aluminum plate, alloy aluminum plate, thin aluminum plate, medium and thick aluminum plate pattern aluminum plate. Aluminum plates are widely used in construction, packaging, air conditioners, refrigerators, solar energy, cosmetics and other industries, and can also be used in power plants, chemical and petrochemical plants, etc.
